6MH68 - 5A | Energy Counters | direct measurement

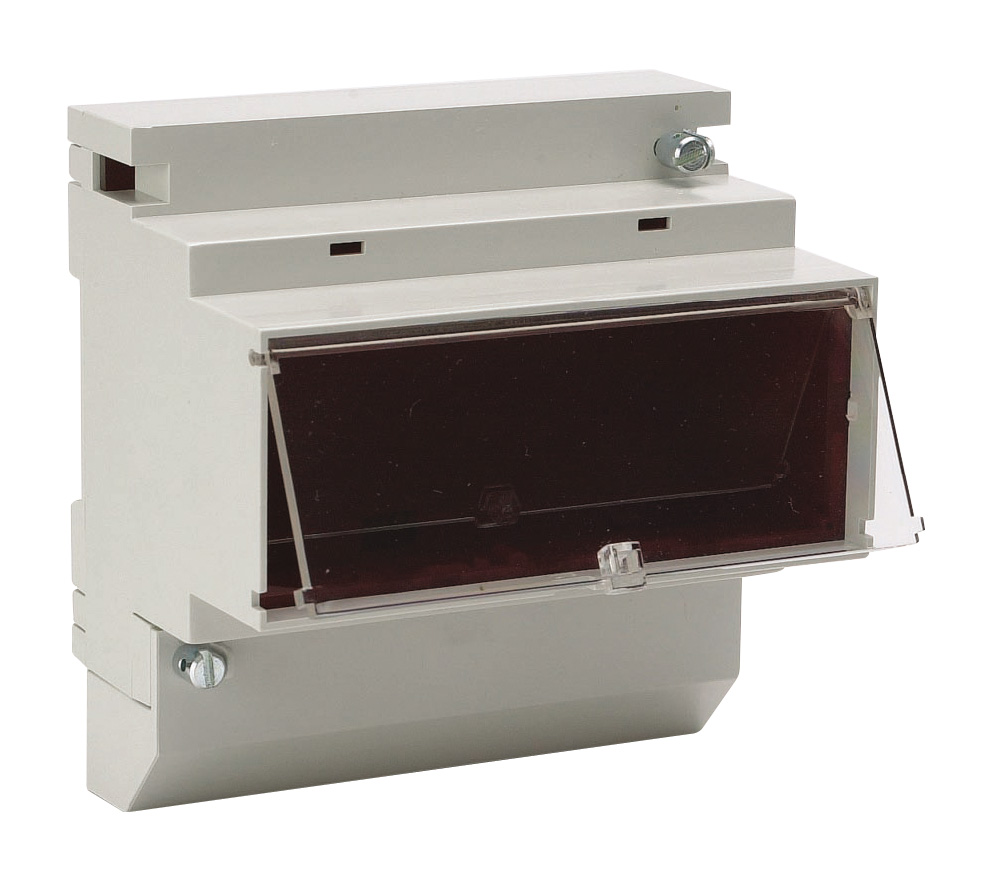

6MH68 - 5A
CHARACTERISTICS:
6MH68-5A has a double sealing system on both base and enclosure and on wire covers. This enclosure has an internal panel with hooks and a transparent polycarbonate panel with hinges which can be sealed becoming tamper proof. This enclosure has an IP20 protection degree thanks to a self-extinguishing wire cover which is fastened and sealed to the enclosure. The front part of the enclosure, next to the polycarbonate panel with hinges, has an IP51 protection degree. This enclosure is particularly suitable for the energy counters up to 10A according to the tests for energy meters (UTIF in Italy).
ENERGY COUNTER FOR INDIRECT MEASUREMENT SEGMENT |
|||
CODE |
DESCRIPTION |
NOTE |
|
05.060268A |
Complete energy counter enclosure 6MH68-5A |
Grey |
|
21.1702090 |
Terminal MV492 24A |
2 poles |
|
21.1502060 |
Terminal MV462 16A |
2 poles |
|
(2) Possibility to personalize the front and rear parts of the enclosure (minimum quantity: 2000 pcs.) |
|||
